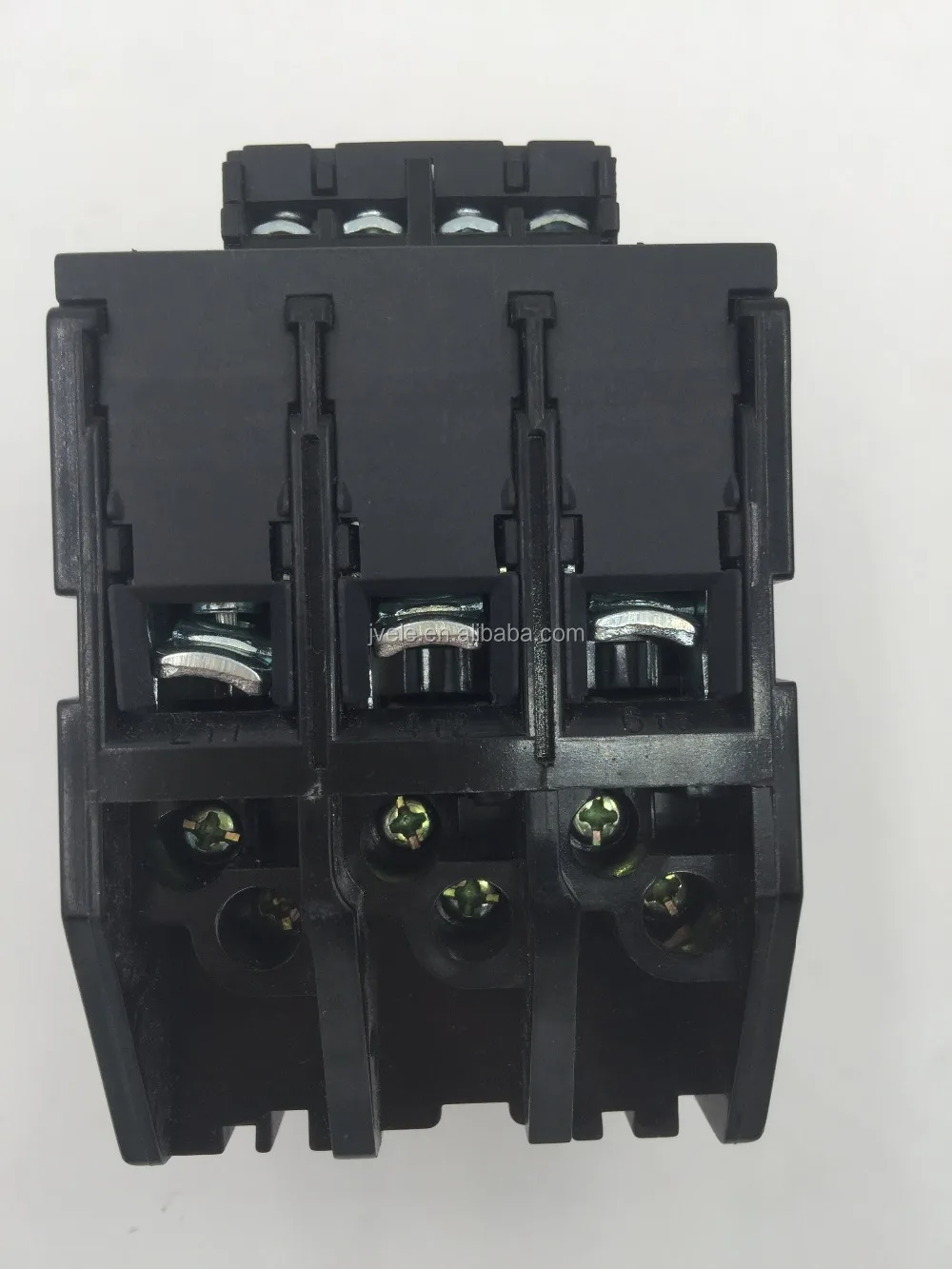

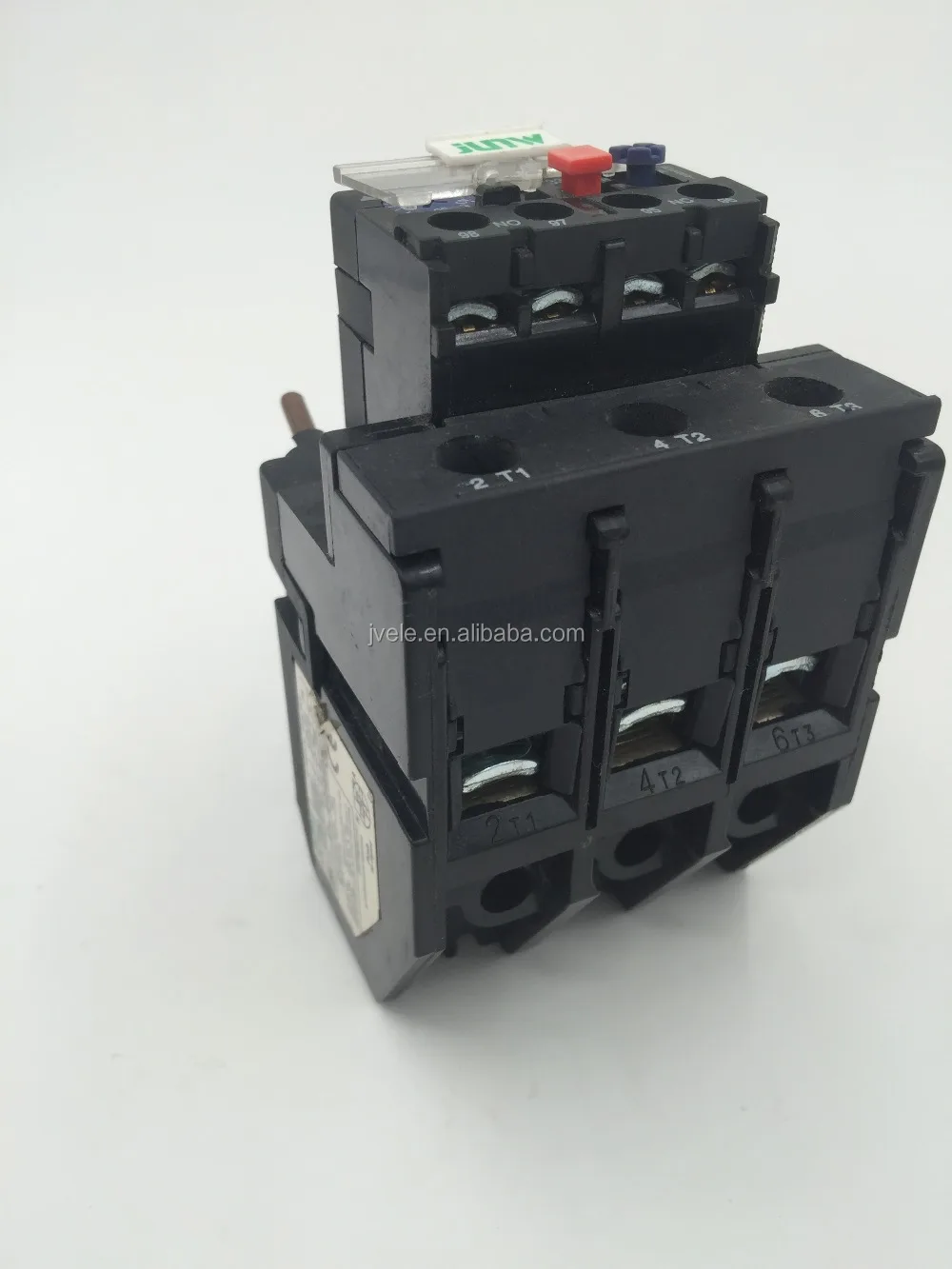

China Supplier For JR28N New LR2-D LRD Series Thermal Overload Relay LRD-13 LRD-33 LRD-43

FOB Reference Price:Get Latest Price
$2.30 - $6.80 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JUNW/OEM
Model Number:
LRD/JR28N
Theory:
Thermal Relay
Usage:
Overload Protection
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Reset:
Automatic&Manual
Frequency:
50Hz/60Hz
Color:
Black/White
Certifications:
CE ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or OEM.
Port
Ningbo/Shanghai/Others.
Lead Time :
Less than 20 days, depend on the order quantity.

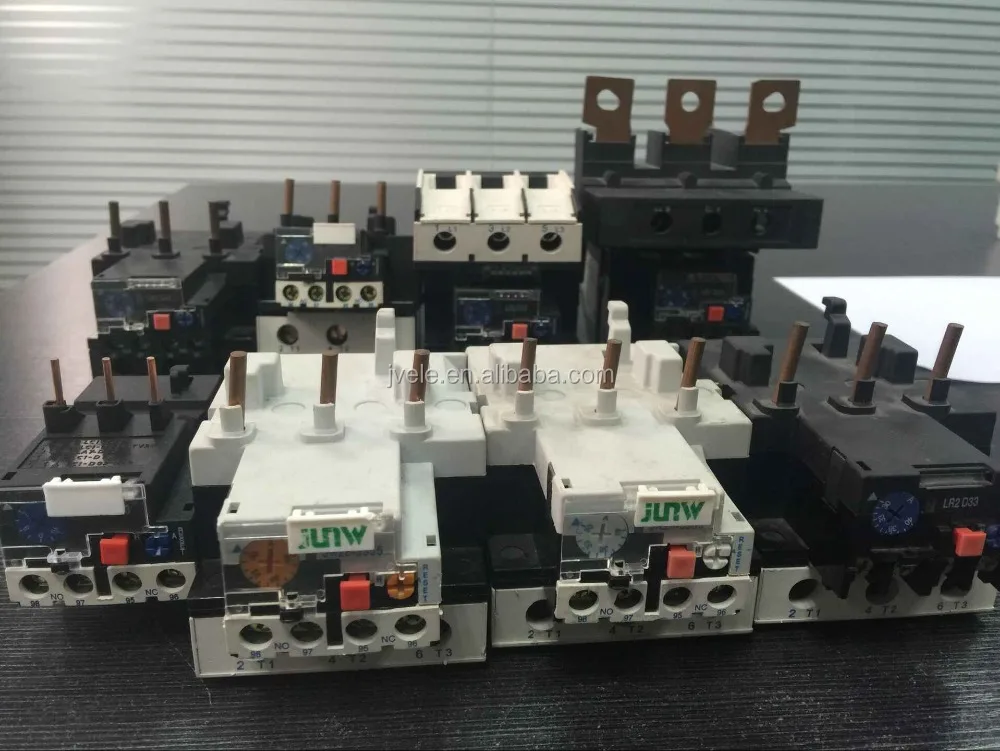

China Supplier For JR28N New LR2-D LRD Series Thermal Overload Relay LRD-13 LRD-33 LRD-43

Application

This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,rated current 0.1-150A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in LC1-D series AC contactor , it is the most advanced thermal relay in the nineties in the world.

Specification



Type

Rated working current

Thermal component

Rated current (A)

Regular or scale of

rated current (A)

JR28N-25

LRD13

JR28N

1301

0.16

0.10-0.16

1302

0.25

0.16-0.25

1303

0.40

0.25-0.40

1304

0.63

0.40-0.63

1305

1.0

0.63-1.0

1306

1.6

1.0-1.6

1307

2.5

1.6-2.5

1308

4.0

2.5-4.0

1310

6.0

4.0-6.0

1312

8.0

5.5-8.0

1314

10.0

7.0-10.0

1316

13.0

9.0-13.0

1321

18.0

12.0-18.0

1322

25.0

17.0-25.0

1332

32.0

23.0-32.0

1335

38.0

28.0-36.0

JR28N-93

LRD33

JR28N

3353

32.0

23.0-32.0

3355

40.0

30.0-40.0

3357

50.0

37.0-50.0

3359

65.0

48.0-65.0

3361

70.0

55.0-70.0

3363

80.0

63.0-80.0

3365

104.0

80.0-104.0

3367

120.0

95.0-120.0

3369

140.0

110.0-140.0

JR28N-150

LRD43

JR28N

4365

104.0

80.0-104.0

4367

120.0

95.0-120.0

4369

140.0

110.0-140.0

More Details


Thanks for your attention, contact  me anytime!
