LR2-D Types Of LR2-D13 LR2-D23 LR2-D33 Thermal Overload Relay

FOB Reference Price:Get Latest Price
$1.60 - $5.50 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JUNW/OEM
Model Number:
LR2-D/JR28
Theory:
Thermal Relay
Usage:
Overload Protection
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Frequency:
50Hz/60Hz
Color:
Black/White
Certifications:
CE ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or OEM.
Port
Ningbo/Shanghai/Others.
Lead Time :
Less than 20 days, depend on the order quantity.

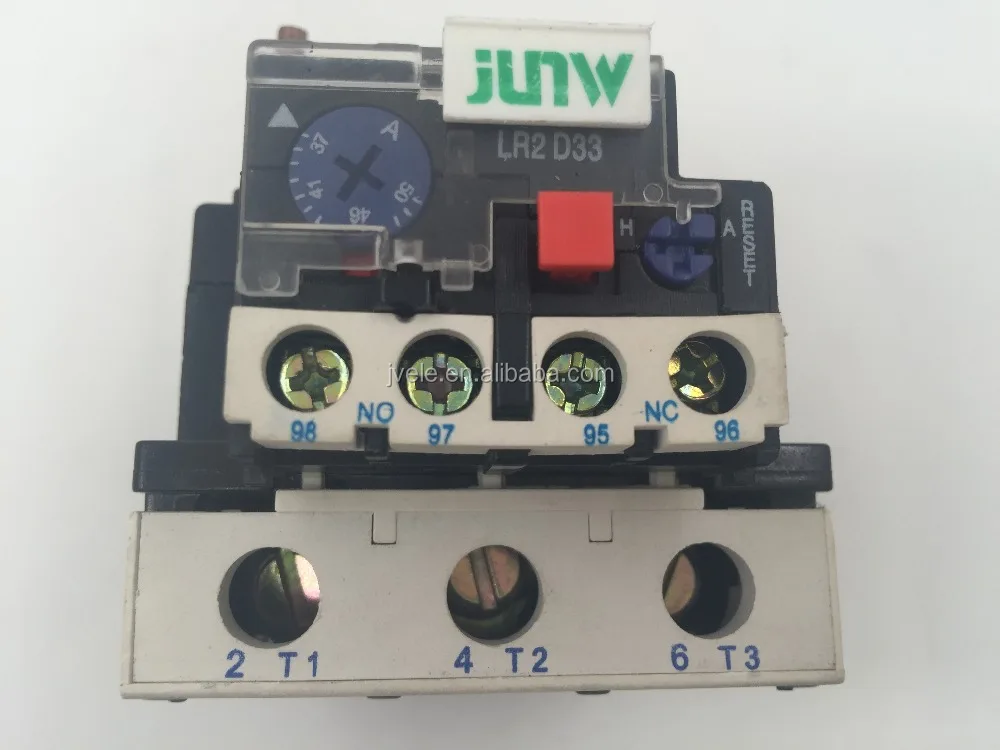

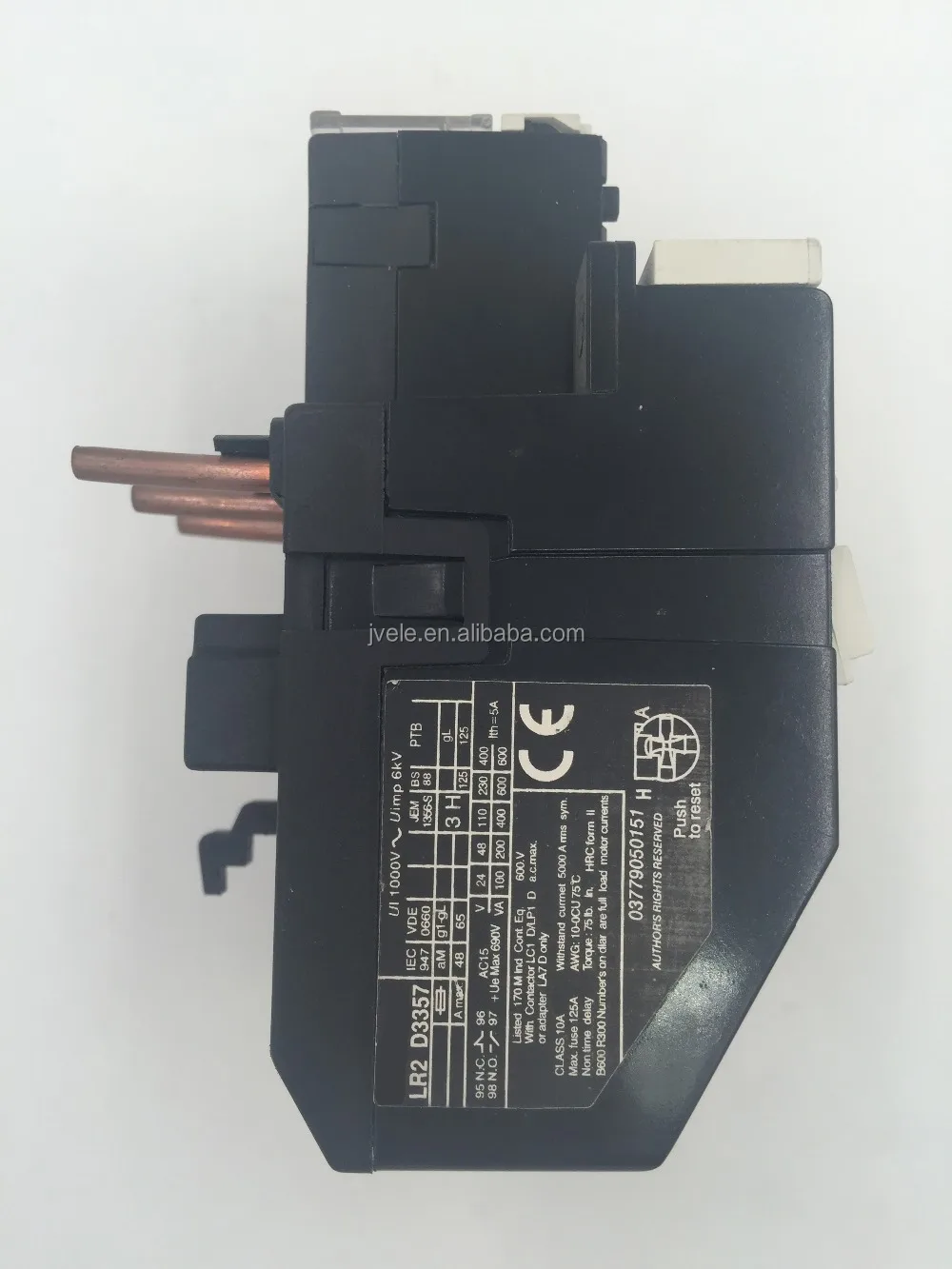

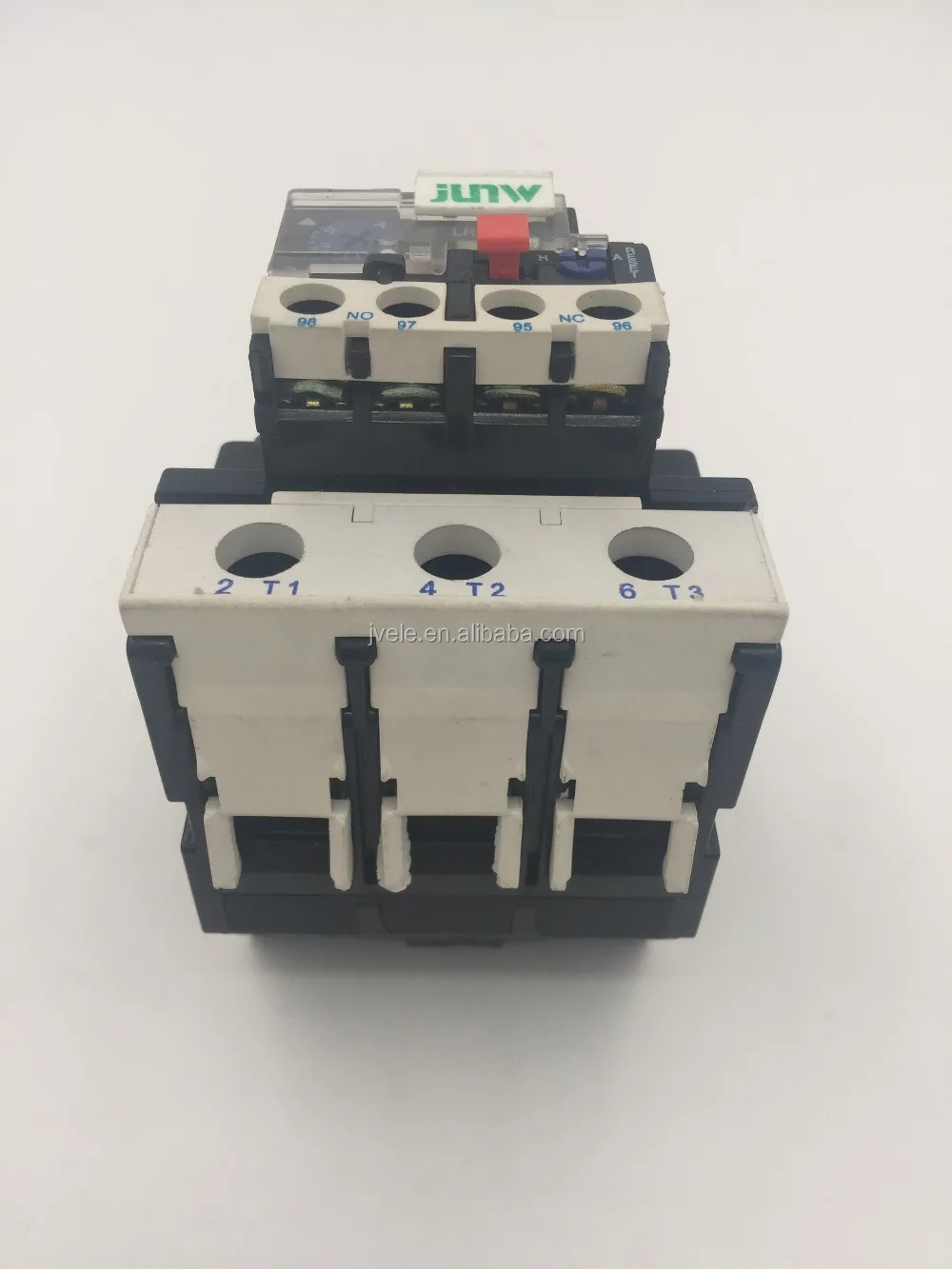

LR2-D Series Thermal Overload Relay From Wenzhou Professional Electrical Manufacture

LR2-D13 LR2-D23 LR2-D33

Application

This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in LC1-D series AC contactor , it is the most advanced thermal relay in the nineties in the world.

Characteristic

 1. Fundamental parameter of the main circuit.



(1). Rated insulation voltage 660V.



(2). Rated working current 25,36,93A separately.



(3). The regulator seal of rated setting current and setting.



(4). Current of the thermal component(see list 1).



2. Auxiliary Circuit



(1). This is one pair of NO/ and N/C contact with electric insulation.



(2). Rated insulation voltage 550V.



(3). Rated frequently 50-60Hz.



(4). Use group, rated working voltage, appoint thermal current and rated current.

Specification



Type

Rated working current
of thermal relay

Thermal component

Rated current(A)

Rated or scale of
rated current(A)

LR2-D13

25

LR2-D1301

0.16

0.10-0.16

1302

0.25

0.16-0.25

1303

0.4

0.25-0.4

1304

0.63

0.41-0.63

1305

1

0.63-1.0

1306

1.6

1.0-1.6

13X6

2

1.25-2.0

1307

2.5

1.6-2.5

1308

4

2.5-4.0

1310

6

4.0-6.0

1312

8

5.5-8.0

1314

10

7.0-10.0

1316

13

9.0-13.0

1321

18

12.0-18.0

1322

25

17.0-25.0

LR2-D23

36

LR2-D2353

32

23.0-32.0

235

36

28.0-36.0

LR2-D33

93

LR2-D3353

32

23.0-32.0

3355

40

30.0-40.0

3357

50

37.0-50.0

3359

65

48.0-65.0

3361

70

55.0-70.0

3363

80

63.0-80.0

3365

93

80.0-93.0
