GTH Series Thermal Overload Relay From China Professional Manufacture GTH-22 GTH-40 GTH-85 GTH-100 GTH-150

FOB Reference Price:Get Latest Price
$2.20 - $6.80 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JUNW/OEM
Model Number:
GTH
Theory:
Thermal Relay
Usage:
Overload Protection
Size:
Miniature
Protect Feature:
Sealed
Contact Load:
Low Power
Reset:
Automatic&Manual
Frequency:
50Hz/60Hz
Color:
Black/White
Certifications:
CE ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or OEM.
Port
Ningbo/Shanghai/Others.
Lead Time :
Less than 20 days, depend on the order quantity.

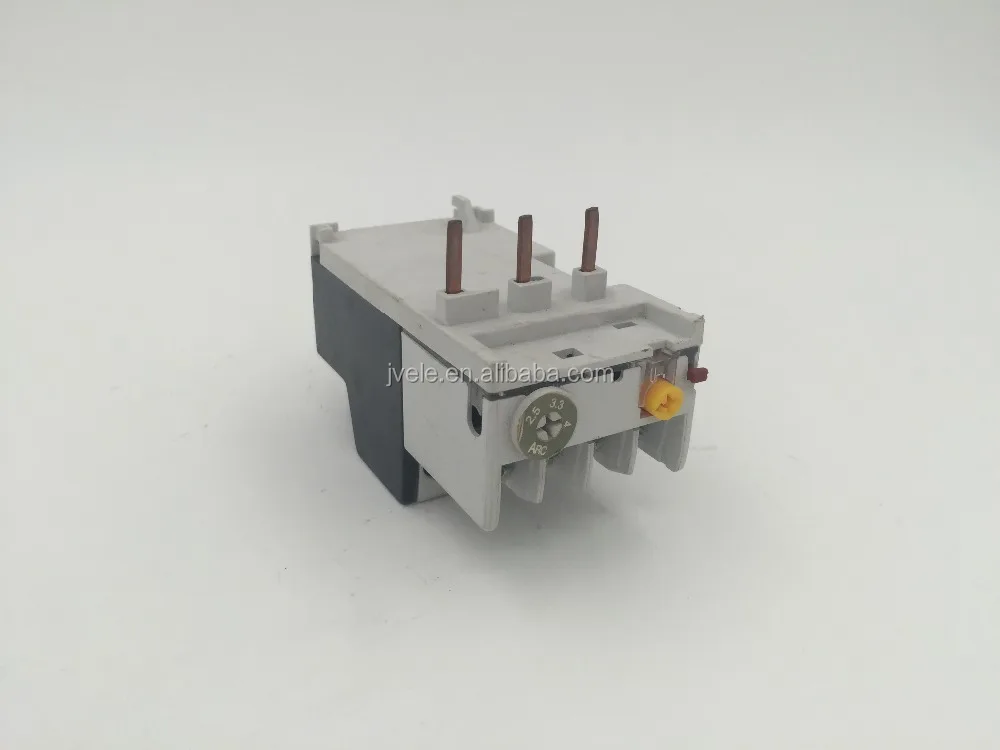

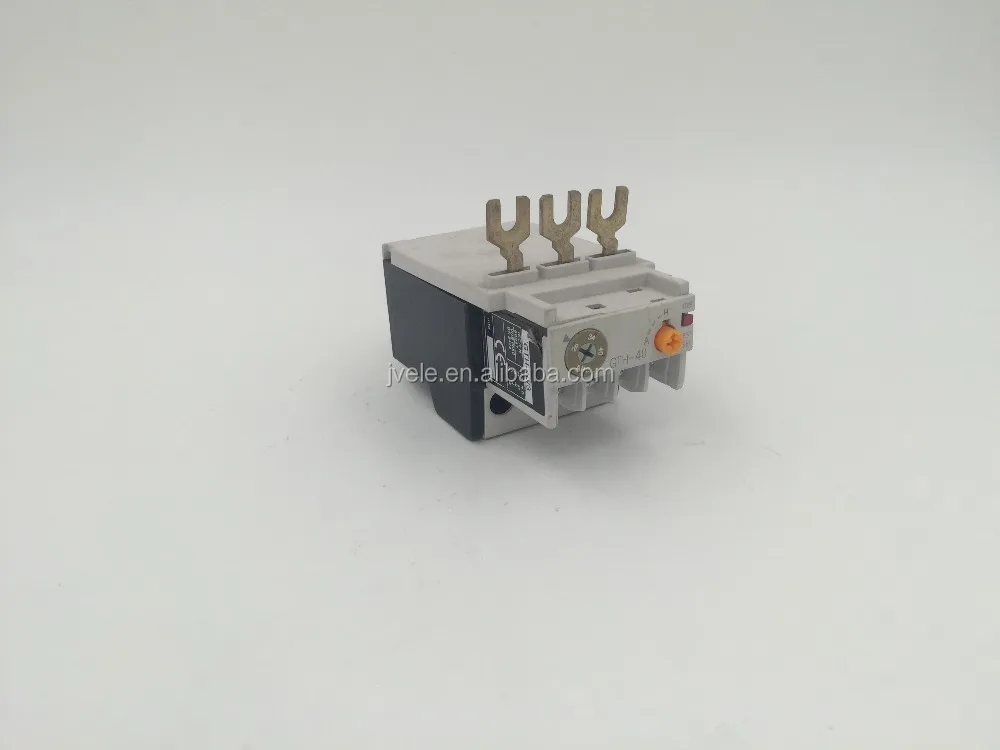

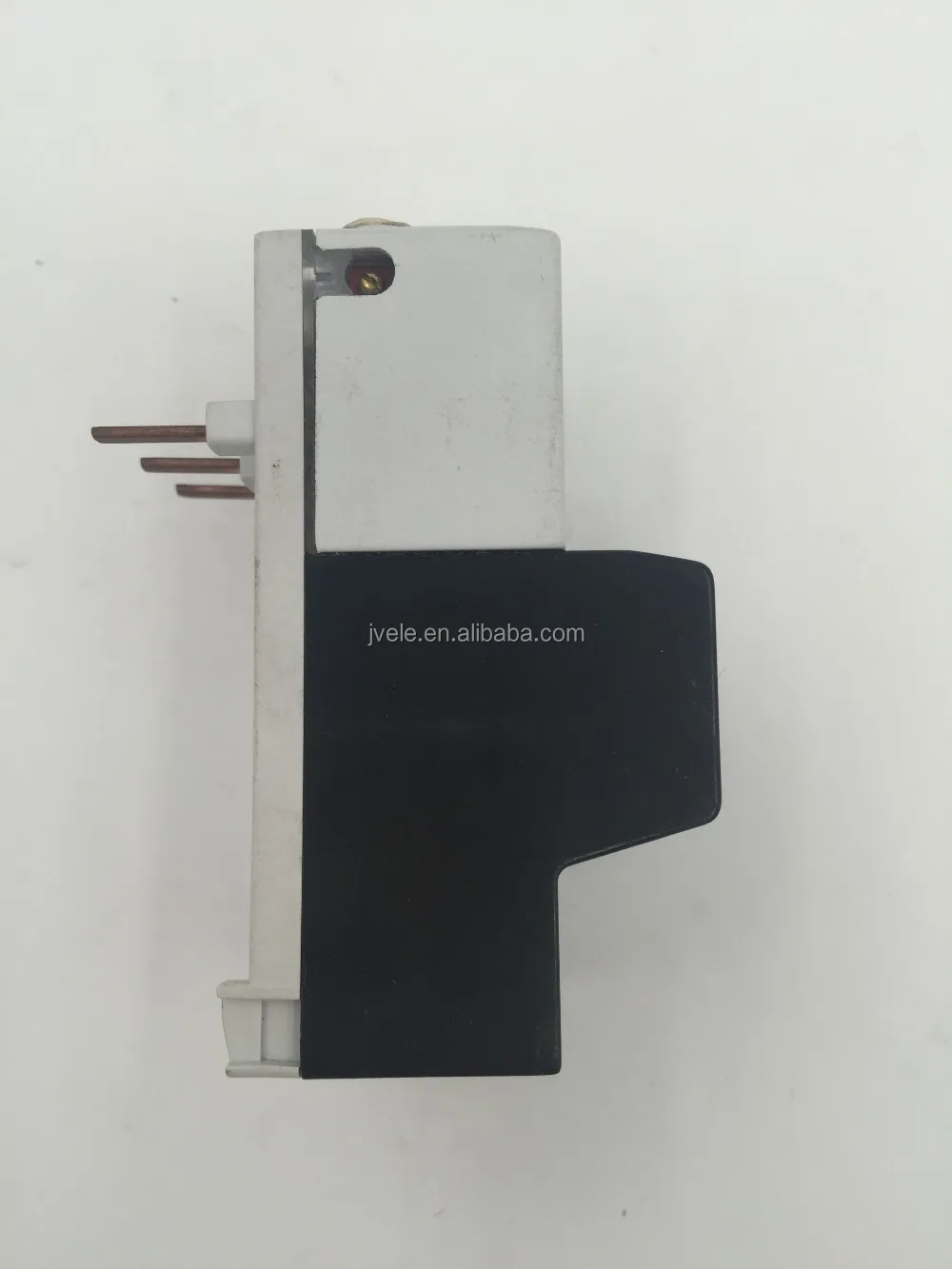

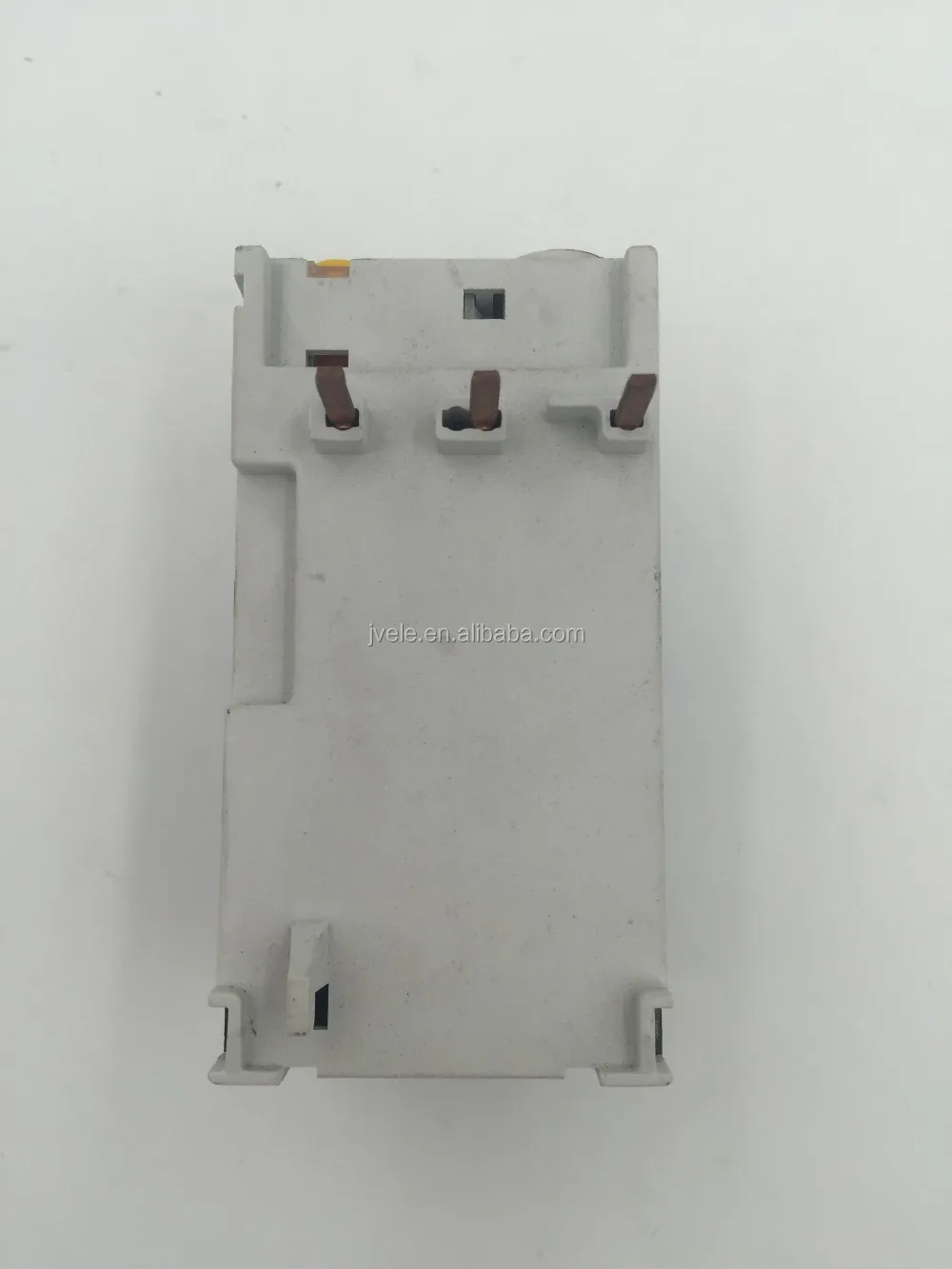

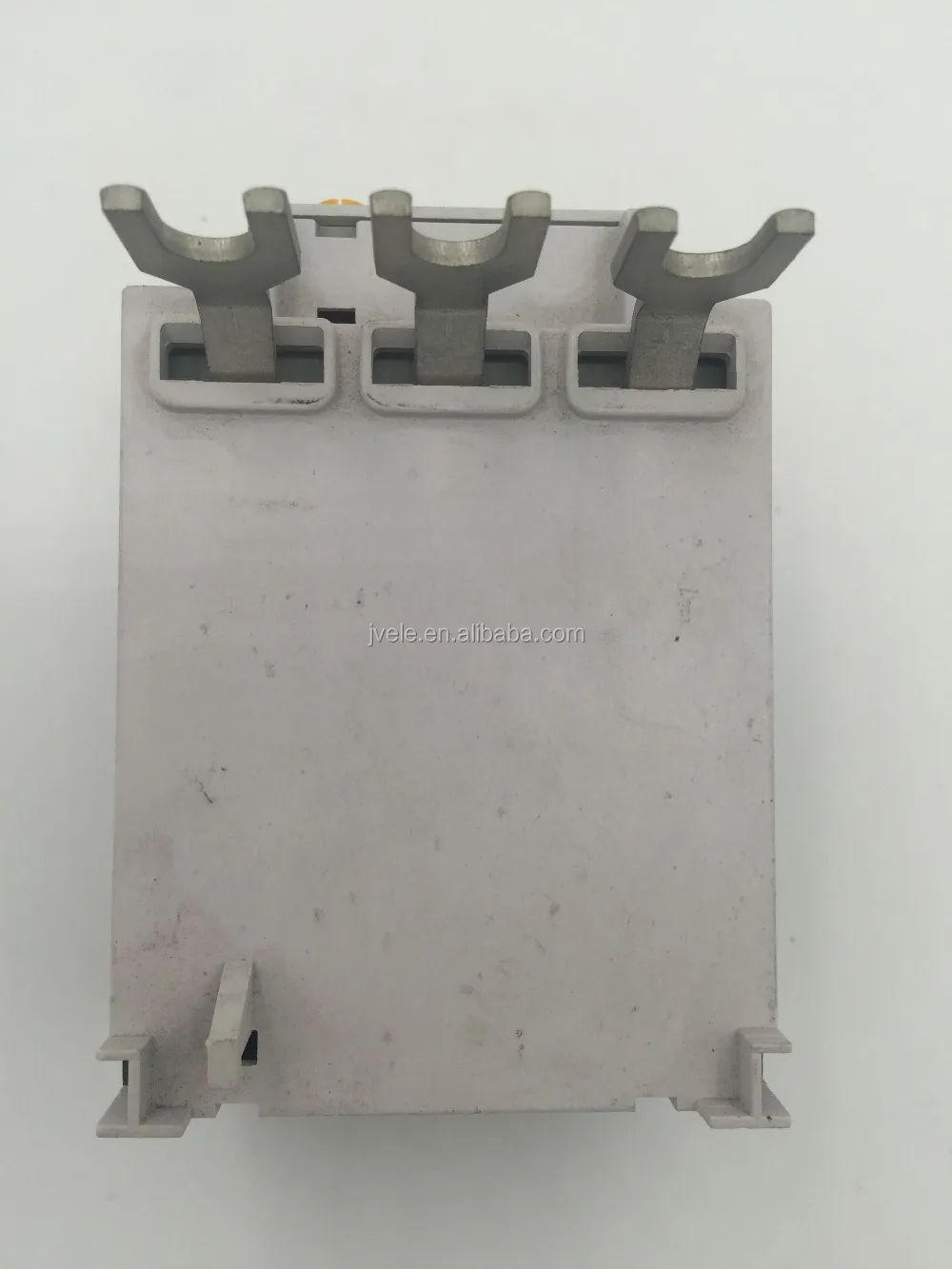

GTH Series Thermal Overload Relay From China Professional Manufacture 0.1A~150A

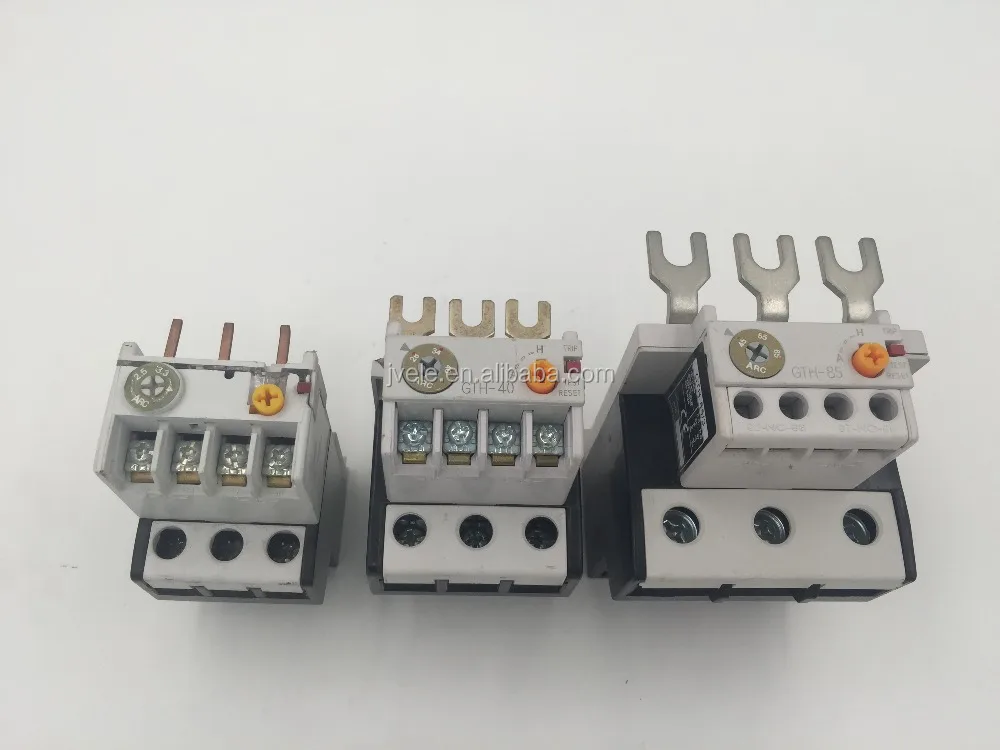

GTH-22 GTH-40 GTH-85 GTH-100 GTH-150

Application

This series of thermal overload relay can be used in the circuit of 50/60Hz, rated insulation voltage 660V, rated current 0.1-85A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in GMC series AC contactor. The products comply with IEC 60947-4.

Specification

Item

GTH-22

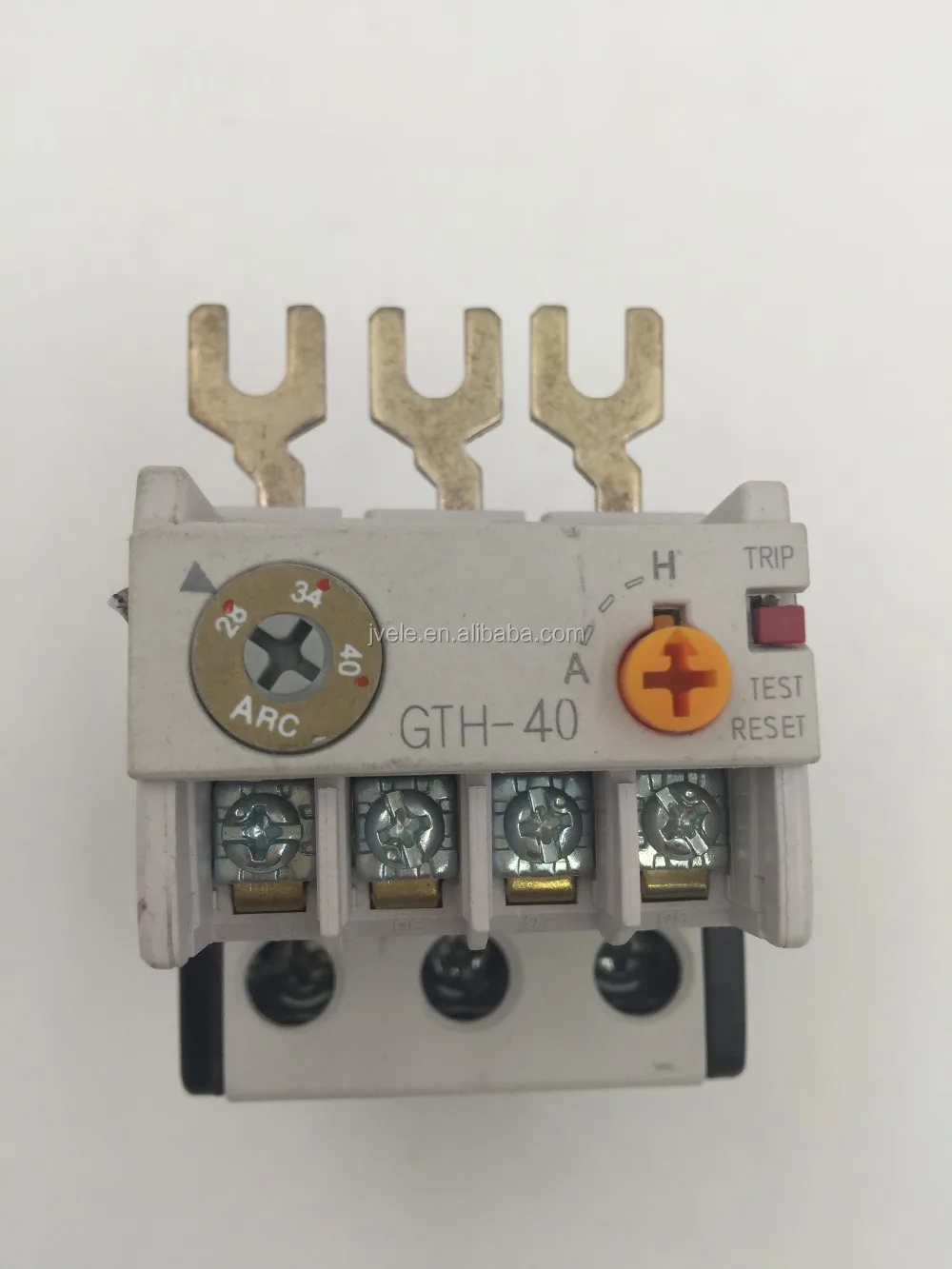

GTH-40

GTH-85

GTH-100

GTH-150

Setting Current Range (A)

0.1-0.16

4.0-6

7.0-10

34-50

34-50

0.16-2.0

5.0-8

9.0-13

39-57

39-57

0.25-0.4

6.0-9

12.0-18

43-65

43-65

0.4-0.63

7.0-10

16.0-22

54-80

54-80

1-1.6

9.0-13

18.0-26

65-100

65-100

1.6-2.5

12.0-18

24-36

85-125

85-125

2.5-4

16.0-22

28-40

_

100-150

4.0-6

18.0-26

34-65

_

_

5.0-8

24-36

45-65

_

_

6.0-9

28-40

54-75

_

_

7.0-10

_

63-85

_

_

9.0-13

_

_

_

_

12.0-18

_

_

_

_

16-22

_

_

_

_

With Contactor

GMC-9 to GMC-22

GMC-32 to GMC-40

GMC-50 to GMC-85

GMC-100 to GMC-125

GMC150



Item

Maximum Power of Motor (KW)



220V

380V

415V

440V

550V

660V

GTH-22

5.5-7.5

11.0-15

11.0-15

11.0-16

15-20

18.5-25

GTH-40

7.5-10

15-20

15-20

15-20

18.5-25

22-30

GTH-85

22-30

37-50

45-60

45-60

55-75

63-85

GTJ-100

30-40

59-80

59-80

63-85

80-110

110-150

GTH-150

45-60

80-100

80-110

90-125

100-135

129-175



More Details

Thanks for your attention, contact  me anytime!
