3Pole 110V/220V/380V 9A/22A/32A/40A/50A/65A/90A/150A/185A/330A/800A meta-mec GMC magnetic ac contactor

FOB Reference Price:Get Latest Price
US $1.56-50 / Pieces | 100 Piece/Pieces piece (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JUNW
Model Number:
GMC-22
Electricity Type:
AC
Number of Pole:
3
Phase:
3
Main Circuit Rating Voltage:
24~440V, 200~660v
Main Circuit Rating Current:
9~250A, 6~125A
Standard:
IEC 60947-4
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day DAY

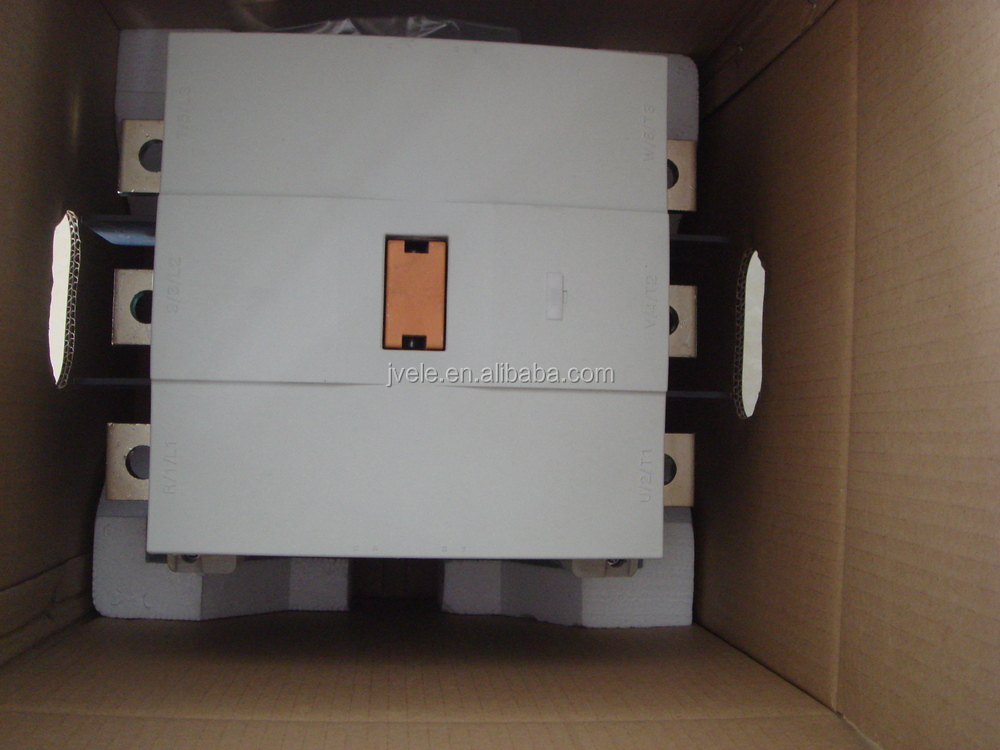

Packaging & Delivery
Packaging Details
OEM PACKAGE & STANDARD PACKAGE
Port
SHANGHAI/NINGBO
Lead Time :
Less than 15days, depend on your require and quantity

 GMC  Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 800A, for making frequently starting & controlling the AC motor. Combined with the auxiliary contact block, thermal relay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.



ModeGMC-9GMC-12GMC-18GMC-22GMC-32GMC-40
IEC-60947 AC1 duty20A20A25A32A50A60A
UL AC3 duty200-240V2.5KW 11A3.5KW 13A4.5KW 18A5.5KW 22A7.5KW 32A11KW 40A
380-440V4KW 9A5.5KW 12A7.5KW 18A11KW 22A15KW 32A18.5KW 40A
500-550V4KW 7A7.5KW 12A7.5KW 13A15KW 22A18.5KW 28A22KW 32A
690V4KW 5A7.5KW 9A7.5KW 9A15KW 18A18.5KW 21A22KW 25A
Continuous current(th)20A25A30A32A45A50A
AC Motor1P115V0.5HP0.5HP1HP2HP2HP3HP
230V1HP2HP3HP3HP5HP5HP
3P200V2HP3HP5HP7HP7.5HP10HP
230V2HP3HP5HP7.5HP10HP10HP
460V5HP7.5HP10HP10HP20HP25HP
575V7.5HP10HP15HP15HP20HP25HP
Panel installationRail & screw
External dimension(mm)44x80x86.868x82x94.6
Mounting dimension(mm)30~35x48~59
35x60



ModeGMC-50GMC-65GMC-75GMC-85GMC-100GMC-125
IEC-60947 AC1 duty80A100A110A135A150A150A
UL AC3 duty200-240V15KW 55A18.5KW 65A22KW 75A25KW 85A30KW 105A37KW 125A
380-440V22KW 50A30KW 65A37KW 75A45KW 85A55KW 105A60KW 120A
500-550V30KW 43A37KW 60A45KW 64A45KW 75A55KW 85A60KW 90A
690V30KW 33A37KW 47A45KW 47A45KW 52A55KW 65A60KW 70A
Continuous current(th)70A80A90A100A160A160A
AC Motor1P115V3HP5HP5HP7.5HP7.5HP10HP
230V7.5HP10HP15HP15HP15HP20HP
3P200V10HP15HP20HP25HP30HP40HP
230V15HP20HP25HP30HP30HP40HP
460V30HP40HP50HP50HP60HP75HP
575V30HP40HP50HP50HP60HP75HP
Panel installationRail & screw
External dimension(mm)94x123.5x117.4100x157.4x146.5
Mounting dimension(mm)100x50~60
100x60
80x110
90x125
80x100
90x125
