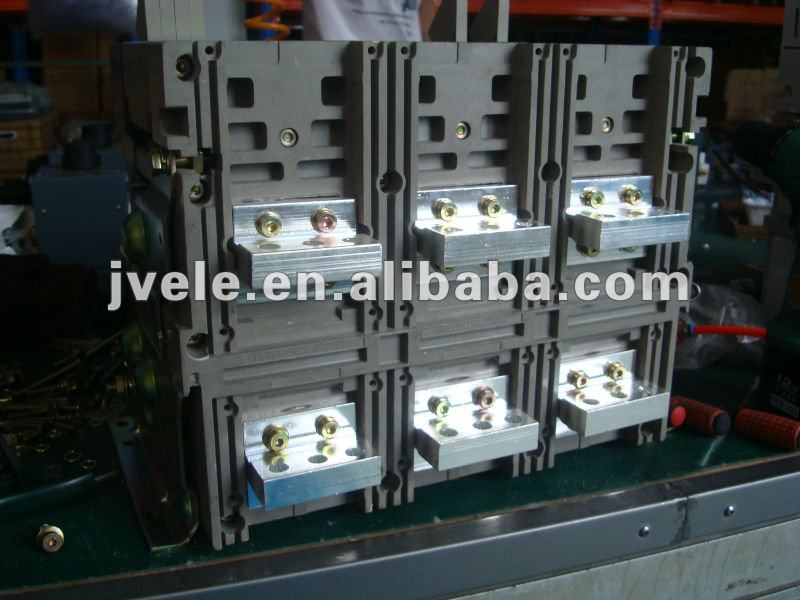

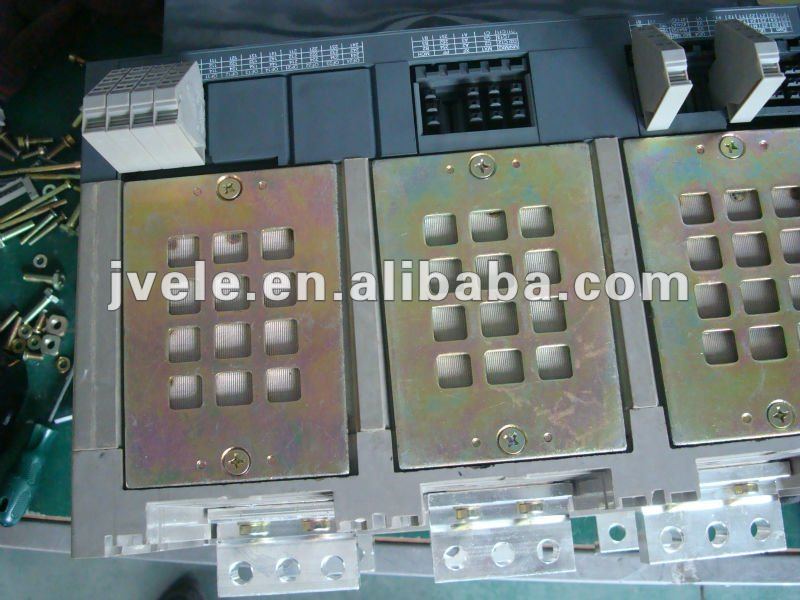

ACB,Intelligent circuit breaker DW45

FOB Reference Price:Get Latest Price
US $1,000-3,000 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JUNW
Model Number:
dw45
Type:
Air
Poles Number:
4
Temperature condition:
-5℃~40℃
Altitude:
≤2000m
Pollution grade:
Grade 3
Rated ultimate short circuit breaking:
120kA/400V ;85KA/690V
rated current In (A):
4000A,5000A,6300A
Rated voltage Ue (V):
400, 690
Rated insulation voltage Ui (V):
1000
Rated current of N-pole In (A):
100%In
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or OEM
Port
Ningbo/others
Lead Time :
less than 30 days ,depend on the order quantity.

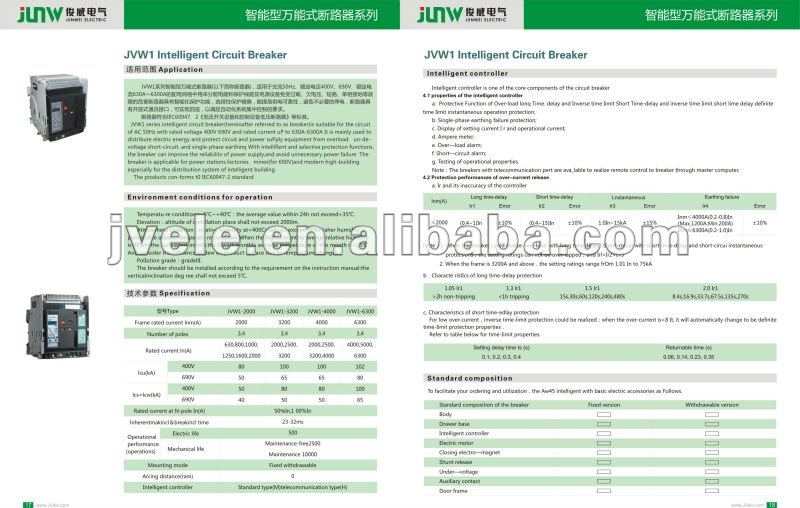

   DW45 series air circuit breaker is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V, 690V and rated service current up to 6300A. It is mainly used to distribute  electric energy and protect  circuits and electric equipment against  over-load, under-voltage, short-circuit and single-phase  earthing  fault.

   With intelligentized  and selective protection functions,  the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations,  factories, mines (for 690V) and modern  high- buildings, especially for the distribution  system of intelligentized  building.



2) Operation conditions

2.1 Temperature condition:  -5°C~40°C;the average value within 24h shall not exceed +35°C(special situation  excluded);

2.2 Altitude:≤2000m;

2.3 Pollution grade:  Grade 3;

2.4 Air conditions:

At mounting site, relative humidity not exceed 50% at the max temperature of +40°C, higher relative humidity is allowable under lower temperature,RH could be 90% at +20°C, special measures  should be taken to occurrence of dews.

Frame size rated current inm(A)Rated current InARated insulation voltage(v)Rated limit short-circuit breaking capacity lcu(kA)Rated operating short-circuit breaking capacity lcu(kA)Rated short-time withstand current lcw kA(1s)
400V690V400V690V
2000630
800
1000
1250
1600
2000
6908050504050
32002000
2500
3200
10065655065
40003200
3600
4000
10065655065/80
63004000
5000
6300
12080807085/100
