Adjustable 3 pole /4 pole MCCB 25A/63A/100A/160A/250A/400A/630A/800A/1000A/1250A/1600A NS /NSX Circuit Breaker

FOB Reference Price:Get Latest Price
US $12-600 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JV/OEM
Model Number:
NS
Type:
Moulded Case
Poles Number:
3
color:
white and grey
poles:
3P/4P
rated current:
6-2500A
certificate:
CE ISO9001
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or OEM
Port
ningbo/shanghai port
Lead Time :
less than 15 days ,depend on the order quantity.

 Rated insuiating voltage : 750v

Rated operating voltage : 690 and below

Ultimate short breaking capacity : 25KA~150KA

Servies short circuit breaking capacity : 25KA~150KA



We are a large scale manufacturer of low voltage electric appliance, cable accessory, electric accessory.

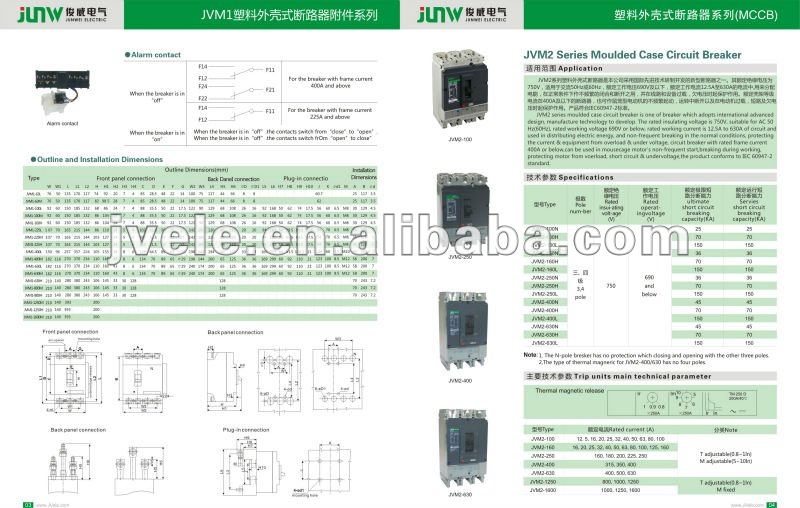

JVM2  Breaker are suitable in AC 50Hz, 250/440V circuit with overload and earth leakage protection. The rated current is adjustable from 25A up to 1600A. User can select suitable current to better protection against overload and short circuit. The products comply with NFC 61450.

Type

Rated current

Note

JVM2-100

12.5,16,20,25,32,40,50,63,80,100

T   adjustable(0.8~1ln)

JVM2-160

16,20,25,32,40,50,63,8/0,100,125,160

M   adjustable(5~10ln)

JVM2-250

160,180,200,225,250



JVM2-400

315,350,400



JVM2-630

400,500,630



JVM2-1250

800,1000,1250

T   adjustable (0.8~1ln)

JVM2-1600

1000,1250,1600

M     fixed
